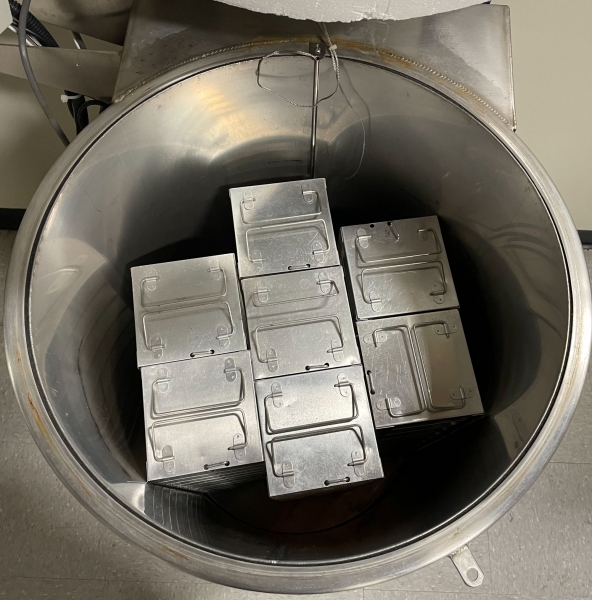

MVE Cryostorage System Model XLC 511-F

Large capacity cryogenics tank. Easy loading and unloading, auto-filling, and system monitoring.

Specifications:

• Liquid Nitrogen Capacity: 158L
• Temperature Maintainance: -125°C in vapor phase storage or -196°C in liquid

• System Monitoring: TEC 3000 Controller

• Power supply: 24 VDC
• Total Capacity: Number of 1.2 ml & 2.0 ml vials: 10,400

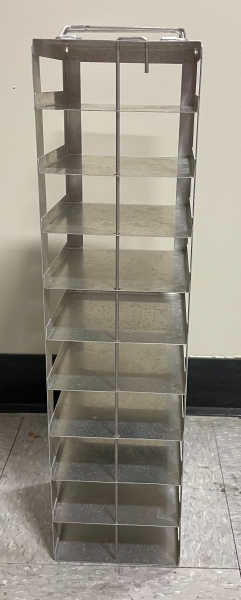

• Total Capacity: Number of racks: 11
• Total Capacity: Number of blood bag stored (Fenwal 4R-5461): 224
• Unit Dimensions:
  • Neck Opening (in/mm): 20.8/528
  • Usable Height (in/mm): 28.6/726
  • Overall Height (in/mm): 44.2/1123
  • Outside Diameter (in/mm): 22.75/579
  • Internal Diameter (in/mm): 20.8/528
• Weight Empty (lbs/kg): 242/110
• Weight Full (lbs/kg): 524/238
• Roller Base: Included
